The games in this practice series are all intentionally small. The goal is to get comfortable with Unity’s APIs, sharpen my problem-solving mindset, and explore different ways of thinking. The top priority is to quickly build working prototypes or extract reusable code snippets. Things like overall architecture or long-term scalability aren’t the focus here.

Merge Big Watermelon

Tutorial Reference and Assets Source：Bilibili-YouChiHui

Source Code： on Gitee

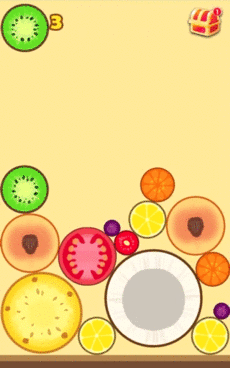

Game Overview

Merge Big Watermelon is a casual browser game released by Weisun Games in early 2021. It quickly went viral thanks to its easy-to-learn mechanics, addictive gameplay, and strong social sharing appeal.

Core Gameplay:

• Players tap the screen to drop random fruits from the top—grapes, oranges, apples, and so on.
• When two identical fruits collide, they merge into a larger one: two grapes become a cherry, two cherries become an orange, and so on. The ultimate goal is to create the biggest fruit—the watermelon.
• The game blends mechanics from Tetris and 2048: fruits fall and stack under gravity, and the game ends if the pile crosses the top of the screen.

Game Breakdown

Content

• Background image

• Walls and floor

• Fruits (active and standby)

• Game-over line

• UI (score display)

• Sound effects (landing, merging)

Core Logic

1. The standby fruit follows the mouse along the X-axis while the mouse is held down, and drops when released
2. Fruits bounce and collide with each other when they land. If two identical fruits touch, they merge into a bigger one
3. If any fruit crosses the game-over line, the game ends and the scene reloads
4. The current score is displayed on screen.

Development Steps

1. Set up the scene layout
2. Add gravity, collision, and bounce physics to fruits and other objects
3. Turn fruits into prefabs
4. Make the standby fruit follow the mouse
5. Drop the fruit when the mouse is released
6. Handle fruit merging logic
7. Detect when fruits hit or cross the game-over line
8. Display the score in the UI
9. Add sound effects

Problems & Solutions

1. No Clear Plan

When I got stuck, I used the classic “How do you put an elephant in a fridge?” mindset—break things down into the tiniest possible steps. For example, Step 4 in the development plan (“make the standby fruit follow the mouse”) can be broken down like this:

• Create an array of standby fruits (types 1–4)
• Define a spawn point for the standby fruit
• Randomly pick a fruit from the array to spawn
• On mouse down, get the mouse’s position and apply it to the fruit (only update the X-axis; keep Y and Z unchanged)
• Add boundary checks so the fruit doesn’t move past the left/right walls

2. Converting Screen Coordinates to World Coordinates

1
2
3
4
5
6
7

// Screen Coordinates -> World Coordinates
Vector3 screenPoint = Input.mousePosition; // eg. The position of the mouse
Vector3 worldPoint = Camera.main.ScreenToWorldPoint(screenPoint);

// World Coordinates -> Screen Coordinates
Vector3 worldPos = player.transform.position;
Vector3 screenPos = Camera.main.WorldToScreenPoint(worldPos);

One thing to watch out for: since the main camera in Unity is positioned at Z = -10 in world space, you need to manually set the Z value to 0 when converting screen coordinates to world coordinates for 2D objects. Otherwise, the object might not be visible—it’ll be behind the camera.

In Unity, the origin of screen coordinates is at the bottom-left corner

3. Delayed Execution

1

Invoke("funcName", second);

4. Assigning the Singleton Instance

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

// After marking a class as a singleton, don’t forget to assign the instance in Awake()
public class PlayerManager : MonoBehaviour
{
    public static PlayerManager Instance;

    public GameObject[] fruits;
    public Transform createPoint;
    [HideInInspector]
    public GameObject waitingFruit;

    private void Awake()
    {
        Instance = this;
    }

    // Other codes
}

5. Fruit Merging Logic

Each fruit has a unique ID, so it can be used to identify individual objects. To avoid both fruits triggering a merge at the same time, only the one with the higher ID is allowed to spawn the next-level fruit.

6. Custom Font Scaling Issue

Custom fonts didn’t scale properly using the usual font size settings, it can be fixed by scaling the entire object instead.

7. Sound Effect Spam on Landing

To avoid messy audio from tiny movements, a velocity threshold can be set to help with this—only play the landing sound if the fruit’s velocity is above a certain value.

Reflection

This was my first hands-on Unity project. I tried to write all the code myself, only checking tutorials when I got stuck—then I’d go back and implement the logic on my own. Whenever I hit an unfamiliar API, I’d dig into my old notes or check the official docs. That really helped the knowledge stick.

The demo covers the core gameplay, though there are still a few bugs. For example, sometimes the game doesn’t restart even when fruits stack past the game-over line. Also, after merging into the final watermelon, I still need to add a victory screen and scene. I’ll revisit to polish those once I’ve finished a few more practice projects.

Code Reuse

1. Use Singleton Pattern for All “Manager” Classes

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

// Take PlayerManager for example
public class PlayerManager : MonoBehaviour
{
    public static PlayerManager Instance;

    private void Awake()
    {
        Instance = this;
    }
    // Other codes
}

2. Make the game object follow the mouse

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

private void PlaceFruit()
{
    // Get the mouse position in screen coordinates
    // Convert it to world coordinates
    Vector3 mousePos = Camera.main.ScreenToWorldPoint(Input.mousePosition);
    // When the left mouse button is held down, move the standby fruit with the mouse
    // In this case, the fruit only follows the mouse along the X-axis
    if (Input.GetMouseButton(0))
    {
        waitingFruit.transform.position = new Vector3(mousePos.x, waitingFruit.transform.position.y, 0);
    }
}

Space Shooter

Tutorial Reference and Assets Source：Bilibili-QiQiKer-Plane

Source Code： on Gitee

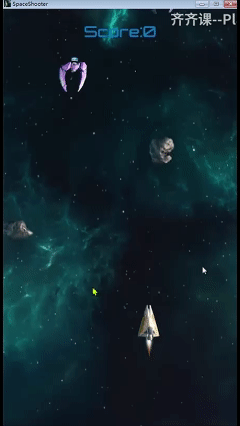

Game Overview

Space Shooter is an official Unity 3D beginner tutorial project designed to help newcomers quickly grasp the basics of Unity development. It covers core concepts such as scene setup, player control, enemy spawning, collision detection, UI display, and audio integration. This version builds on the original tutorial by adding upgraded features—like enemies that can fire bullets.

Core Gameplay:

• Genre: 2D space shooter (with a 3D top-down view)
• Objective: Pilot your spaceship and survive as long as possible while destroying waves of enemies and asteroids.
• Controls:
  • Movement: Use WASD or arrow keys to move freely within the screen
  • Shooting: Left mouse button fires bullets
• Enemy Behavior:
  • Asteroids and enemy ships spawn randomly from the top of the screen, falling at different speeds
  • Enemies move side-to-side and shoot bullets at the player
  • The player must dodge or destroy them to avoid collisions or being hit by enemy fire
• Game Over: The game ends if the spaceship is hit by an asteroid or a bullet
• Scoring System: Each destroyed enemy adds points, with the UI showing the score in real time

Game Breakdown

Content

• Scene setup

• Background slowly scrolling downward

• Animations: enemy explosions, asteroid explosions, ship tilting when moving left/right, asteroid rotation

• UI: score display

• Audio: background music, shooting, hit effects

Core Logic

1. Player can move in all four directions and shoot bullets
2. Asteroids spawn randomly at the top of the screen and fall at a constant speed
3. Enemies spawn randomly at the top, move down faster, dodge left/right, and fire bullets
4. Current score is displayed in the UI
5. If the player is hit by enemy bullets or collides with asteroids/enemies, the ship is destroyed and the scene reloads

Development Steps

1. Background Setup

   • Looping background movement
   • Add starfield particle effects
   • Add background music

2. Player Implementation

   • Player movement controls
   • Tilting effect when moving left/right (greater speed = larger tilt angle)
   • Shooting mechanics
   • Player bullets with sound effects

3. Enemies & Asteroids

   • Random spawning of asteroids and enemies
   • Random asteroid rotation effect
   • Enemy shooting logic
   • Enemy side-to-side dodging movement

4. Effects

   • Attack and collision effects

5. UI

   • Build the UI layout
   • Implement score display logic

Problems & Solutions

1. Moving the Background

Should the background move, or should the camera move? In most cases, it’s easier to move the background. Since the scene contains asteroids, enemies, the player, and other objects, keeping the camera still simplifies everything.

One thing to keep in mind:

• When doing any kind of back‑and‑forth or looping movement that needs to stay in sync with absolute time, use Time.time.
• For regular movement, timers, or accumulative values that must stay frame‑rate independent, use Time.deltaTime.

1
2
3
4
5
6
7
8
9

// Movement calculation (usually handled with built‑in APIs)
this.transform.Translate(Vector3.forward * 1 * Time.deltaTime, space.World); // 如果是自己坐标系：Space.Self

// Looping background movement
private void ScrollBG()
{
    float distance = Mathf.Repeat(_scrollSpeed * Time.time, 30);
    transform.position = _startPos + distance * Vector3.forward * (-1);
}

2. Rigidbody calculations should be placed in

Since the time between frames in Update() can vary depending on device performance and workload, running physics or Rigidbody operations there may cause jitter or inconsistent behavior. Using FixedUpdate() ensures physics calculations run at a stable, fixed timestep.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

// Control the player's movement by manipulating the Rigidbody
private void FixedUpdate()
{
    MovePlayer();
}

private void MovePlayer()
{
    float horizontalVel = Input.GetAxis("Horizontal"); // 0-1
    float verticalVel = Input.GetAxis("Vertical");
    Vector3 velocity = new Vector3(horizontalVel, 0, verticalVel);
    _playerRB.velocity = velocity * _speed;
    // Other codes
}

3. A Simple Way to Handle Boundary Checking

It’s often easier to visually adjust boundary positions in the Inspector rather than controlling everything purely through code. The idea is to create a struct inside the class, mark it as serializable, and then reference it in your logic. (Don’t forget to instantiate the Border class before using it.)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

public class PlayerController : MonoBehaviour
{
    [Serializable]
    public struct Border
    {
        public float maxZ;
        public float minZ;
        public float minX;
        public float maxX;
    }

    [SerializeField] private Border _border;

    // Other codes
	private void MovePlayer()
    {
      	// Other codes

        // Border check
        float posX = Mathf.Clamp(_playerRB.position.x, _border.minX, _border.maxX);
        float posZ = Mathf.Clamp(_playerRB.position.z, _border.minZ, _border.maxZ);
        _playerRB.position = new Vector3(posX, 0, posZ);
    }
}

4. Apply tilt to the object through Rigidbody-based rotation

1
2
3
4
5

// Rotate the object 30° around the Y-axis
Quaternion rotation = Quaternion.Euler(0, 30, 0);

// You can directly use the Rigidbody's rotation property
_playerRb.rotation = Quaternion.Euler(0, 0, _playerRb.velocity.x * (-1) * tilt);

5. Component-Based (“Feature Hook”) Architecture

Break reusable functionality into small, focused components (e.g., MoveController), then let higher-level behavior scripts (e.g., PlayerController / EnemyController) compose and use them.

Pros: High reusability, clear responsibilities, easy to test, easy to maintain; follows composition over inheritance.

Cons: Some objects may end up with multiple small scripts attached, but this is normal for single‑responsibility design and has minimal performance impact.

Best Practices: Keep each component focused on a single responsibility, use interfaces/events for decoupling, use RequireComponent, store shared data in ScriptableObjects or config classes, and reuse behavior through Prefabs.

The “best practices” part is still a bit abstract for me. I’ve seen it once in the “2048” project, and I’ll need more hands‑on experience to fully internalize how to apply it.

6. When to Call GetComponent

A commonly recommended pattern is:

• Use Awake() when retrieving and caching components on the same GameObject.
• Use Start() when the component depends on other objects that also initialize in Awake()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

// Get the Rigidbody component from the same GameObject as MoveController
public class MoveController : MonoBehaviour
{
    private Rigidbody rb;

    private void Awake()	// Retrieve the Rigidbody in Awake()
    {
        rb = GetComponent<Rigidbody>();
    }

    public void Move(Vector3 dir, float speed)
    {
        rb.velocity = dir.normalized * speed;
    }
}

// This script depends on values initialized by other objects in their Awake(), so use Start()
public class EnemyAI : MonoBehaviour
{
    private MoveController move;
    private Transform player; // Assume the Player finishes its setup in Awake()

    private void Start()
    {
        move = GetComponent<MoveController>();	// Another object (MoveController) gets the component in Start()
        player = GameObject.FindWithTag("Player")?.transform; // Waiting until all Awake() calls are done makes the lookup safer
    }

    private void Update()
    {
        if (player == null) return;
        Vector3 dir = (player.position - transform.position);
        dir.y = 0f;
        move.Move(dir, 3f);
    }
}

7. General Coroutine Usage

A few things to keep in mind:

• Define a method that returns IEnumerator, and use yield return inside it to wait (e.g., null, new WaitForSeconds(...), WaitForEndOfFrame, etc.)
• Start it with StartCoroutine(MyCoroutine()); you can stop it with StopCoroutine if needed
• Never write a while(true) loop without any yield inside a main-thread method (like Start()), or it will freeze the entire game loop

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

// Use coroutines to spawn and destroy enemies
// Run the spawn loop inside a coroutine and use Instantiate to create enemies,
// then use another coroutine to destroy them after a delay
private void Start()
{
    StartCoroutine(SpawnEnemyWave());
}

private IEnumerator SpawnEnemyWave()
{
    yield return new WaitForSeconds(startSpawnTime);
    while (true)
    {
        for (int i = 0; i < enemyCount; i++)
        {
            GameObject prefab = enemies[Random.Range(0, enemies.Length)];
            GameObject newEnemy = Instantiate(prefab);
            newEnemy.transform.position = new Vector3(Random.Range(-4, 5), 2, 10);
        }
        yield return new WaitForSeconds(spawnWaitingTime);
    }
}

// Enemies and their bullets are all destroyed the same way as the player's bullets,
// using a unified KillBox system

8. Implementing Asteroid Self‑Rotation

Use the Random.insideUnitSphere API, which returns a random Vector3 whose direction and magnitude are uniformly distributed inside a unit sphere. Multiplying this vector by rotationSpeed scales it to the desired angular velocity. Finally, assign it to Rigidbody.angularVelocity: the vector’s direction represents the rotation axis, and its magnitude represents the angular speed (in radians per second). As a result, the asteroid rotates around a random axis at the given speed.

1
2
3
4

 private void Start()
 {
     _rb.angularVelocity = Random.insideUnitSphere * rotationSpeed;
 }

9. Two Ways to Implement Enemy Shooting

Method 1: Use the same approach as the player’s shooting logic—accumulate time and fire when the timer exceeds a threshold.

Method 2: Use the InvokeRepeating(string methodName, float time, float repeatRate) API. It calls methodName after time seconds, and then repeats the call every repeatRate seconds.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

// Implementation of Method 1
private void Update()
{
    SpawnBullet();
}

private void SpawnBullet()
{
    _waitingTime += Time.deltaTime;
    if (_waitingTime > cooldown)
    {
        Instantiate(bullet, shootPos);
        AudioMgr.Instance.PlayAudio(AudioMgr.Instance.clips[1]);
        _waitingTime = 0;
    }
}

// Implementation of Method 2
private void Start()
{
    InvokeRepeating("SpawnBullet", startingTime, cooldown);
}

private void SpawnBullet()
{
    Instantiate(bullet, shootPos);
    AudioMgr.Instance.PlayAudio(AudioMgr.Instance.clips[1]);
}

10. Implementing Enemy Dodging Behavior

After an enemy has existed for a certain amount of time (a random value), it begins a dodge action. If the enemy spawns on the left half of the screen, it moves to the right; if it spawns on the right half, it moves to the left. After dodging for another random duration, it stops the horizontal movement, continues descending, and then repeats the dodge cycle until it is naturally destroyed.

• Use a coroutine to perform the dodge for a period of time, then return to straight downward movement
• To make the dodge motion smooth and natural, apply acceleration using Mathf.Lerp(float a, float b, float t), where a is the start value, b is the target value, and t is the interpolation factor between 0 and 1
• Remember to perform boundary checks while the enemy is moving

The tutorial uses Mathf.MoveTowards(float current, float target, float maxDelta) instead. This API is conceptually similar to Lerp in that it moves current toward target smoothly. However, using this method requires a much larger acceleration value; otherwise, the enemy may appear to not dodge at all. The reason lies in the fundamental difference between the two:

• Lerp uses proportional interpolation (t is a 0–1 ratio), which pulls the value toward the target proportionally—even if the target is on the opposite side, it still produces a small counter‑directional velocity
• MoveTowards uses an absolute step size (maxDelta), moving only a fixed amount per frame. If maxDelta is too small (e.g., acceleration is low), the per‑frame velocity change is overshadowed by other factors (friction, resets, threshold checks), making it look like “no dodge happened”

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

private void Start()
{
    StartCoroutine(Dodge());
}

private void FixedUpdate()
{
    // float xVel = Mathf.MoveTowards(_rb.velocity.x, _targetDodgeSpeed, Time.fixedDeltaTime * acceleration);  // 100
    float xVel = Mathf.Lerp(_rb.velocity.x, _targetDodgeSpeed, Time.fixedDeltaTime * acceleration); // 20
    _rb.velocity = new Vector3(xVel, _rb.velocity.y, _rb.velocity.z);
}

private IEnumerator Dodge()
{
    while (true)
    {
        yield return new WaitForSeconds(Random.Range(startingTimeMin, startingTimeMax));

        _targetDodgeSpeed = Random.Range(dodgeSpeedMin, dodgeSpeedMax);
        // If the enemy spawns on the right half of the screen, dodge to the left
        // If it spawns on the left side, its natural horizontal speed is already positive,
        // so it will dodge left automatically and needs no adjustment
        if (_rb.position.x >= 0)
        {
            _targetDodgeSpeed = -_targetDodgeSpeed;
        }

        float targetTime = Random.Range(movingTimeMin, movingTimeMax);

        yield return new WaitForSeconds(targetTime);
        _targetDodgeSpeed = 0;
    }
}

11. When to Use OnTrigger vs. OnCollision

Both can be used for collision detection.

OnCollision is used when actual physical interaction is required, such as collisions, bouncing, or applying forces. Since it calculates contact points and impulses, it has a higher performance cost and is suitable for real physics interactions.

OnTrigger only detects overlap and does not automatically produce physical responses. Because it usually doesn’t compute contact points or impulses, it’s cheaper than OnCollision. It’s ideal for area detection, trigger zones, pickups, damage areas, and similar cases.

12. How to Handle Effect Destruction (Separation of Concerns)

Effect destruction should be handled in a dedicated script rather than mixing it into the CollisionCheck script. This keeps responsibilities separated (CollisionCheck only handles triggering and detection), improves reusability, and makes it easier to switch to an object‑pooling system instead of destroying effects every time.

Reflection

The tutorial introduced several fresh ideas. In this project, I started writing my own coroutines and continued practicing the singleton pattern learned from the previous game. Whenever I had questions or felt the tutorial’s approach exceeded my current understanding, I asked AI for clarification—and the answers were generally satisfying. This project‑driven learning style feels very efficient, and the constant feedback helps prevent mental fatigue.

There are still concepts I don’t fully grasp yet, such as “single‑responsibility components” and “decoupling with interfaces/events.” I’ll need more hands‑on experience in future projects to internalize these ideas.

Another fun discovery: the Unity splash screen logo can be replaced! I immediately created a small custom logo, and it looks great.

Code Reuse

1. Scrolling Infinite Background

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

[SerializeField] private float _scrollSpeed;
private Vector3 _startPos;

private void Start()
{
	_startPos = transform.position;
}

private void Update()
{
	ScrollBG();
}

private void ScrollBG()
{
    float distance = Mathf.Repeat(_scrollSpeed * Time.time, 30);
    transform.position = _startPos + distance * Vector3.forward * (-1);
}

2. Rotation Effect

1
2
3
4
5
6
7

// Random rotation for the sphere
_rb.angularVelocity = Random.insideUnitSphere * rotationSpeed;

// The 3D object tilts according to its velocity on a specific axis (x‑axis here)
 _rb.rotation = Quaternion.Euler(0, 0, _rb.velocity.x * (-1) * tilt);
float posX = Mathf.Clamp(_rb.position.x, border.minX, border.maxX);
_rb.position = new(posX, _rb.position.y, _rb.position.z);

3. MoveController

Using a Rigidbody allows this logic to be reused for any object moving along the Z‑axis.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

public class MoveController : MonoBehaviour
{
   [SerializeField] private float flySpeed;
   private Rigidbody _rb;
   private void Awake()
   {
      _rb = GetComponent<Rigidbody>();
   }

   private void FixedUpdate()
   {
      _rb.velocity = Vector3.forward * flySpeed;
   }
}

4. DestroyByTime

This logic can be reused for automatically destroying visual effects or other similar things.

1
2
3
4
5
6
7
8
9

public class DestroyByTime : MonoBehaviour
{
    [SerializeField] private float delay;

    private void Start()
    {
        Destroy(gameObject, delay);
    }
}

5. AudioManager

Reusable for managing and playing all sound effects.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

public class AudioMgr : MonoBehaviour
{
    public static AudioMgr Instance;
    public AudioClip[] clips;
    private AudioSource _audioSource;

    private void Awake()
    {
        Instance = this;
        _audioSource = GetComponent<AudioSource>();
    }

    public void PlayAudio(AudioClip clip)
    {
        _audioSource.PlayOneShot(clip);
    }
}

Flappy Bird

Tutorial Reference and Assets Source：Youtube-Zigurous

Source Code： on Gitee

Game Overview

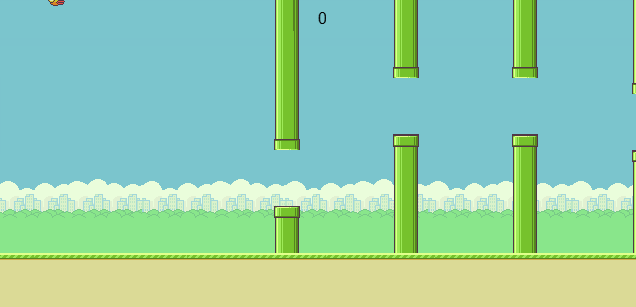

Flappy Bird is a simple 2D mobile game released in 2013 by Vietnamese developer Dong Nguyen. The game became a global phenomenon due to its extremely simple visuals, extremely high difficulty, and the uniquely “addictive frustration” it creates.

Core Gameplay:

• Genre: Pixel‑style 2D game with a scrolling background; the player controls a small pixel bird
• Goal: Guide the bird through pairs of pipes; the farther you fly, the higher you score
• Controls:
  • Tap the screen (or press any key) to make the bird flap upward briefly
  • Without input, the bird continuously falls due to gravity
• Obstacle System:
  • Randomly generated green pipes of varying heights appear in the scene
  • The bird must pass through the gap between each pair of pipes
  • Touching a pipe or the ground results in an immediate game over
• Failure Condition:
  • The bird hits an obstacle or the ground
• Scoring:
  • Passing through each pair of pipes awards 1 point
  • There is no upper limit to the score

Game Breakdown

Content

• Scene layout (parallax background, infinite scrolling)
• Animation (bird flapping)
• UI (score display)
• Sound effects (scoring, collision)

Core Logic

1. The bird moves forward automatically and falls naturally under gravity
2. The player can press W, the Up Arrow, or click the left mouse button to make the bird move upward
3. If the bird hits a pipe or the ground while moving forward, the game ends
4. Display the current score

Development Steps

1. Bird
   • Bird movement
   • Bird flapping animation
2. Background
   • Background creation
   • Parallax scrolling
3. Pipes
   • Pipe prefab creation
   • Pipe generation
   • Pipe movement
4. Scoring
5. UI design / setup
6. Menu interaction implementation
7. Adding sound effects

Problems & Solutions

1. Implementing Touch Controls

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

// Example: controlling the bird's upward movement
// Touch input mode
if (Input.touchCount > 0)   // As long as a finger is touching the screen
{
    Touch touch = Input.GetTouch(0);    // Get the first touch
    if (touch.phase == TouchPhase.Began)     // When the touch just begins
    {
        _dir = Vector3.up * strength;
    }
}

2. Using InvokeRepeating to Implement a Simple Animation

It’s important to note that InvokeRepeating schedules a method to be called at fixed intervals within Unity’s main loop. Each invocation finishes and returns control to the engine, and the method is called again after the next interval. Although it is not an actual infinite loop, if you write a while(true) (or any non‑terminating loop) inside the invoked method, the method will never return, blocking the main thread and freezing the game/editor.

In addition, InvokeRepeating is typically placed in Start (or any one‑time initialization after Awake). You only need to call it once to schedule the repeated execution, and Unity will continue calling the method at the specified interval. If you place InvokeRepeating inside Update, it will register a new repeating call every frame, resulting in a huge number of concurrent scheduled calls. This leads to the method being executed multiple times, more frequently than intended, causing logic errors and performance issues.

Using InvokeRepeating to animate the bird’s flapping:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

private void Start()
{
    InvokeRepeating(nameof(AnimateSprite), 0.15f, 0.15f);
}

private void AnimateSprite()
{
    _sr.sprite = sprites[_index];
    _index++;
    if (_index >= sprites.Length)
        _index = 0;
}

3. An Approach to Implementing Parallax + Infinite Background

In the tutorial, all background elements are created as 3D Quads, and the 2D images are turned into Materials using the Unlit/Texture shader. The movement effect is achieved by adjusting the built‑in Offset property of the material. This method is very simple and highly reusable.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

public class Parallax : MonoBehaviour
{
    [SerializeField] private float speed;
    private MeshRenderer _meshRenderer;

    private void Awake()
    {
        _meshRenderer = GetComponent<MeshRenderer>();
    }

    private void Update()
    {
        _meshRenderer.material.mainTextureOffset += new Vector2(speed * Time.deltaTime, 0);
    }
}

4. An Alternative Approach to Destroying Pipes

The common approach is to place a trigger collider at the left edge of the screen, and when a pipe prefab enters that trigger, it gets destroyed. The tutorial uses a simpler method: destroying the pipe based on its pixel position.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

private float _killEdge;

private void Start()
{
    _killEdge = Camera.main.ScreenToWorldPoint(Vector3.zero).x - 1;
}

private void Update()
{
    // Other codes

    if (transform.position.x < _killEdge)
    {
        Destroy(gameObject);
    }
}

5. Coordinate Systems in Unity

World Coordinates (World)

• Unity’s world coordinates are based on the global origin (0,0,0), measured in Unity units (commonly treated as meters)
• Axis directions: X to the right, Y upward, Z forward (positive Z points toward the front of the Scene view)
• transform.position represents a GameObject’s world position; transform.localPosition is its position relative to its parent

Screen Coordinates (Screen)

• Measured in pixels, with the origin at the bottom‑left corner (0,0); the top‑right corner is (Screen.width, Screen.height)
• Legacy IMGUI (OnGUI) uses the top‑left corner as the origin; UI coordinate behavior also depends on the Canvas Render Mode (Screen Space / World Space)

Viewport Coordinates (Viewport)

• Normalized coordinates in the range [0,1], with (0,0) at the bottom‑left and (1,1) at the top‑right
• Conversion available via Camera.ViewportToWorldPoint and WorldToViewportPoint

In the pipe‑destruction example above, Camera.ScreenToWorldPoint(Vector3 screenPoint) is used to convert the screen‑space origin (0,0,0)—i.e., Vector3.zero—into world coordinates. This ensures that the value can be compared with transform.position.x inside Update, since both are then in the same coordinate system.

6. Restarting and Pausing the Game

The simplest approach is to use Time.timeScale.

Reflection

Because this is a 2D game, directions like Vector3.up and Vector3.left can be used directly, which greatly simplifies the code. The tutorial introduced several elegant and practical design ideas—for example, using 3D quads for the background and applying _meshRenderer.material.mainTextureOffset to achieve infinite scrolling and parallax; converting a point from screen coordinates to world coordinates to determine when an object should be destroyed, instead of relying on traditional collision detection; and implementing simple animations using InvokeRepeating combined with iterating through sprites, avoiding the need for Unity’s built‑in animation system.

In my own practice, I revisited the singleton pattern for both the GameManager and AudioManager, and refreshed my understanding of sound playback and UI interaction design. Even though this is a beginner‑level mini‑game, I still learned a lot from it.

Code Reuse

A Spawner Implementation

Using InvokeRepeating to spawn game objects at fixed intervals.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

private void OnEnable()
{
    InvokeRepeating(nameof(Spawn), startSpawn, spawnRate);
}

private void OnDisable()
{
    CancelInvoke();
}

private void Spawn()
{
    GameObject pipe = Instantiate(prefab, transform.position, Quaternion.identity);
    pipe.transform.position += Vector3.up * Random.Range(minHeight, maxHeight);
}

Other reusable code snippets have already been covered in the “Problems & Solutions” section above, so they won’t be repeated here.

Pong

Tutorial Reference and Assets Source：Youtube-Zigurous

Source Code： on Gitee

Game Overview

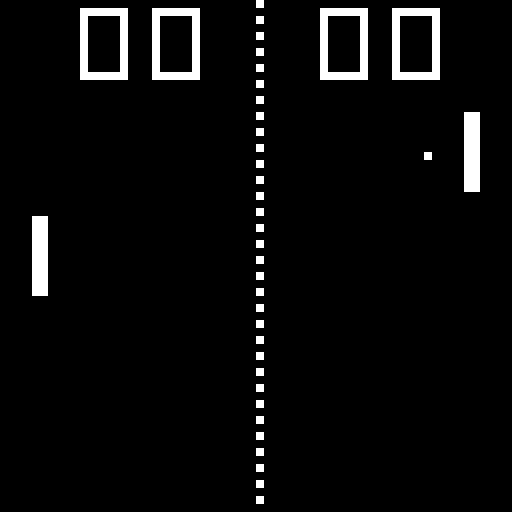

Pong is one of the earliest and most influential arcade games in video game history, released by Atari in 1972. It simulates the real‑world sport of table tennis and is widely regarded as the first commercially successful video game.

Core Gameplay:

• The game takes place on a 2D plane with a vertical paddle on each side and a moving ball in the center
• The player controls one paddle, moving it up and down (typically via joystick or buttons) to bounce the ball back toward the opponent
• If a player fails to return the ball, the opponent scores a point
• The ball bounces off the top and bottom boundaries; hitting the left or right boundary results in a score
• As the game progresses, the ball may gradually increase in speed, raising the difficulty

Game Breakdown

Content

• Scene layout

• Player paddle

• Ball

• AI paddle

• UI (score display)

Core Logic

1. The player moves the paddle using W / Up Arrow and S / Down Arrow to hit the ball
2. The ball bounces off the top and bottom boundaries
3. If the ball enters the player’s side, the opponent scores a point, and vice versa
4. Display the current score

Development Steps

1. Scene layout
2. Player paddle movement
3. Ball movement implementation
4. AI paddle behavior
5. Gradual increase in ball speed after each bounce
6. Displaying the UI score

Problems & Solutions

1. Angular Drag and Linear Drag

In a Rigidbody, Angular Drag represents the angular damping coefficient. If you don’t want the object to rotate, you should manually set it to 0 (its default value is 0.05) and also disable rotation on the Z‑axis in the Constraints section. This is a common setup for 2D games like this one.

Linear Drag, on the other hand, applies to positional movement. A higher drag value causes the object to stop moving or rotating more quickly after being affected by collisions or forces.

2. Notes on Using FixedUpdate

Avoid reading input directly inside FixedUpdate. Since FixedUpdate runs at the physics timestep, input events may be missed or become inconsistent.

The correct approach is to read input inside Update(), store the result in a field, and then apply forces based on that field inside FixedUpdate().

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

private void Update()
{
    if (Input.GetKey(KeyCode.W) || Input.GetKey(KeyCode.UpArrow))
    {
        _dir = Vector2.up;
    }
    else if (Input.GetKey(KeyCode.S) || Input.GetKey(KeyCode.DownArrow))
    {
        _dir = Vector2.down;
    }
    else
    {
        _dir = Vector2.zero;
    }
}

private void FixedUpdate()
{
    if (_dir.sqrMagnitude != 0)
    {
        Rb.AddForce(_dir * strength);
    }
}

FixedUpdate is primarily used for updates that need to stay in sync with the physics system.

Tasks appropriate for FixedUpdate:

• Applying forces/torque (Rb.AddForce / AddRelativeForce) or directly setting Rigidbody.velocity
• Using Rigidbody.MovePosition / MoveRotation (for Kinematic Rigidbodies)
• Timers, constraints, and solver logic that must match the physics timestep (deterministic simulation, server‑side physics steps)
• Physics‑based queries (collision checks, overlap tests, raycasts performed within the physics step)
• Physics prediction/interpolation/extrapolation logic (synchronized with the fixed timestep)

Tasks not appropriate for FixedUpdate (require per‑frame or lower‑latency handling):

• Input reading
• Rendering / camera follow
• UI updates
• Animation (typically handled in Update or LateUpdate)

3. Implementing Ball Bounce Behavior

Using code like this will not produce the correct effect. The issue is likely incorrect direction calculation: using -rb.velocity is not equivalent to reflecting the velocity based on the collision normal. As a result, the ball may be pushed in an unintended direction.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

private void OnCollisionEnter2D(Collision2D other)
{
    if (other.transform.CompareTag("Ball"))
    {
        Rigidbody2D rb = other.gameObject.GetComponent<Rigidbody2D>();
        _dir = rb.velocity.normalized;

        rb.AddForce(-_dir * strength);
    }
}

It can be resolved by using the collision contact normal.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

private void OnCollisionEnter2D(Collision2D other)
{
    if (other.transform.CompareTag("Ball"))
    {
        Rigidbody2D rb = other.gameObject.GetComponent<Rigidbody2D>();
        _dir = other.GetContact(0).normal;  // Normal of the collision contact point

        rb.AddForce(-_dir * strength);
    }
}

4. Using the EventSystem to Handle Player and AI Scoring

The implementation feels very similar to how UI buttons work.

Explanation of the code:

• TriggerEvent is essentially an alias/subclass of UnityEvent<BaseEventData>, allowing callbacks that receive BaseEventData to be registered either in the Inspector or via code
• A BaseEventData instance is created with the current EventSystem as its source; the callback can read this eventData to obtain context
• Calling scoreTrigger.Invoke triggers all registered callbacks and passes in the eventData

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

public class ScoringArea : MonoBehaviour
{
    [SerializeField] private EventTrigger.TriggerEvent scoreTrigger;
    private void OnCollisionEnter2D(Collision2D other)
    {
        if (other.gameObject.CompareTag("Ball"))
        {
            BaseEventData eventData = new BaseEventData(EventSystem.current);
            scoreTrigger.Invoke(eventData); // Invoke all registered callbacks with the eventData
        }
    }
}

Reflection

The tutorial uses a base class Paddle along with two subclasses, PlayerPaddle and ComputerPaddle. Shared logic—such as component retrieval—is placed in the parent class, while each subclass implements its own behavior. In C++ projects, I frequently rely on inheritance, but when working in Unity I often forget to apply it. In future projects, I need to remind myself to use inheritance more often when it fits the design.

Code Reuse

Reusable code in this project has already been discussed in the “Problems and Solutions” section:

• Implementation of ball bounce behavior
• Using the EventSystem to flexibly trigger multiple callbacks

Asteroids

Tutorial Reference and Assets Source：Youtube-Zigurous

Source Code： on Gitee

Game Overview

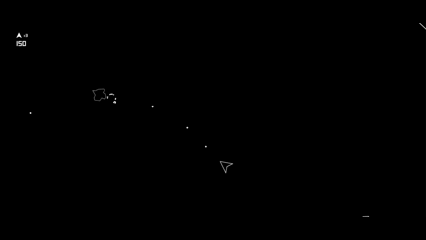

Asteroids is a classic arcade shooter released by Atari in 1979. With its minimalist vector graphics and fast‑paced gameplay, it became a landmark title in video game history.

Core Gameplay:

• The player controls a small spaceship that moves freely in zero‑gravity space (able to thrust, rotate, and shoot)
  • Press W / Up Arrow or S / Down Arrow to rotate
  • Press A / Left Arrow or D / Right Arrow to thrust left or right
  • Press Space or click the left mouse button to fire bullets
• Asteroids of various sizes continuously appear, drifting in from the edges of the screen
• Objective: destroy all asteroids with laser shots
  • Large and medium asteroids split into smaller fragments when hit (e.g., Large → Medium → Small → Disappear)
• Failure:
  • The spaceship is destroyed instantly upon colliding with an asteroid (typically with limited lives)
• Additional Features:
  • The ship has momentum; it continues drifting even after thrust stops, requiring reverse thrust to slow down

Game Breakdown1

Content

• Scene layout

• Player

• Asteroids

• Explosion effects

Core Logic

1. Player movement and shooting
2. Random asteroid spawning and movement
3. Asteroids split when hit by the player’s bullets, until they disappear
4. The round ends if the player collides with an asteroid
5. Display the current score
6. When all lives are used up, the game ends

Development Steps

1. Scene setup
2. Player implementation
   • Movement
   • Shooting
3. Asteroid implementation
   • Asteroid prefabs (different shapes, sizes, masses, initial angles)
   • Spawning asteroids
   • Implementing split/destroy logic
4. Ending a round
   • Player death and respawn
   • Player explosion effect
5. Displaying the UI score and player’s lives
6. Ending the game when all lives are exhausted

Problems & Solutions

1. Configuring Collision Layers

Use Project Settings > Physics 2D to ignore collisions between the player and bullets, as well as between bullets themselves.

2. Setting Initial Asteroid States

Since the asteroids in this project have multiple variants—different sizes, sprites, masses, and initial angles—the strategy is to configure all these parameters directly in the asteroid prefabs. This allows the Spawner.cs script to simply instantiate the prefabs, keeping responsibilities clean and separated:

• Asteroid.cs handles the asteroid’s own properties
• Spawner.cs handles asteroid generation

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

public class Asteroid : MonoBehaviour
{
    [SerializeField] private Sprite[] sprites;
    [SerializeField] private float size = 1f;
    [SerializeField] private float speed = 1f;
    public float minSize = 0.5f;
    public float maxSize = 1.5f;
    private SpriteRenderer _sr;
    private Rigidbody2D _rb;

    private void Awake()
    {
        _sr = GetComponent<SpriteRenderer>();
        _rb = GetComponent<Rigidbody2D>();
    }

    private void Start()
    {
        _sr.sprite = sprites[Random.Range(0, sprites.Length)];
        transform.eulerAngles = new Vector3(0, 0, Random.value * 360);

        //size = Random.Range(minSize, maxSize);

        transform.localScale = Vector3.one * size;
        _rb.mass = size; // Adjust mass based on asteroid size

    }

    public void SetTrajectory(Vector2 dir)
    {
        _rb.AddForce(dir * speed);
    }

Initial Rotation of Asteroids:

Use Random.value, which returns a value between 0 and 1. Since the asteroid rotates around the Z‑axis, the rotation can be set simply as: transform.eulerAngles = new Vector3(0, 0, Random.value * 360);

Handling Asteroid Size:

This logic cannot be placed inside Asteroid.cs, because that script later handles the splitting behavior. If size is randomized inside Start(), it will break the splitting logic. The correct approach is to randomize the size inside Spawner.cs. This was a major pitfall I encountered during the project.

3. Approach to Asteroid Spawning and Movement

Asteroids are spawned within a circular area centered on the screen. They move toward the center. To introduce randomness, an offset angle is added to the direction toward the center. Since the offset is applied around the Z‑axis, Quaternion.AngleAxis(float angle, Vector3.forward) can be used.

For asteroid movement, the movement logic itself is handled by Asteroid.cs, while Spawner.cs instantiates the asteroid and calls its movement behavior.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

 private void Start()
 {
     InvokeRepeating(nameof(Spawn), spawnInterval, spawnInterval);
 }

// Spawn the asteroid at a position within a certain radius from the spawner
private void Spawn()
{
    Vector2 spawnOffset = Random.insideUnitCircle * spawnRadius;
    Vector2 spawnPos = (Vector2)transform.position + spawnOffset;   // Pick a random point inside the radius centered on the spawner
    Vector2 dir = ((Vector2)transform.position - spawnPos).normalized;

    // Add an angular offset to the direction toward the center
    float variance = Random.Range(-trajectoryAngle, trajectoryAngle);
    Quaternion rotation = Quaternion.AngleAxis(variance, Vector3.forward);

    GameObject obj = Instantiate(asteroidPrefab, spawnPos, Quaternion.identity);
    Asteroid asteroid = obj.GetComponent<Asteroid>();
    asteroid.size = Random.Range(asteroid.minSize, asteroid.maxSize);	// Handle the random size assignment for the asteroid here
    asteroid.SetTrajectory(rotation * dir);
}

It’s important to note that the final movement direction of an asteroid is computed as rotation * dir. Since rotation is a quaternion, this operation applies the rotation to the vector:

Rotated Vector = Quaternion * Original Vector

The quaternion must be on the left side of the multiplication operator.

The underlying mathematical principles will be explored in more detail when studying the related math topics, so they won’t be expanded on here.

Additional Notes on Quaternions

Avoid modifying the x, y, z, or w components of a quaternion directly. These values do not represent angles; they are part of a complex mathematical structure. Directly editing them will lead to incorrect behavior.

Always use Unity’s built‑in API.

Commonly Used API Methods:

4. Designing Player Invincibility Frames

This is implemented by changing the player’s physics collision layer using LayerMask.NameToLayer(layerName);. It’s straightforward, and Invoke is used to schedule the duration of the invincibility period.

5. Particle System Configuration

Since the UI logic uses Time.timeScale to control game start and end states, the particle system must not accidentally play at the moment a new round begins. To prevent this, set the particle system’s Delta Time to Unscaled in the Inspector.

Reflection

This project requires extensive use of rotation‑related methods, so becoming comfortable with the commonly used APIs is essential. It also highlights the need to strengthen the underlying math knowledge.

There are also two techniques in this project that are worth remembering and using more often:

Passing references to objects from other scripts through method parameters

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

//======= GameManager.cs =======
// The function is defined here because many of its parameters are managed centrally by the GameManager
public void AsteroidDestroyed(Asteroid asteroid)
{
    if (asteroid.size <= 0.75f)
    {
        score += 5;
    }
    else if (asteroid.size <= 1.3f)
    {
        score += 2;
    }
    else
    {
        score += 1;
    }

    Vector2 pos = asteroid.transform.position;
    explosion.transform.position = pos;
    explosion.Play();
}

//========== Asteroid.cs =========
// The method is invoked by the Asteroid class itself when a collision occurs
private void OnCollisionEnter2D(Collision2D other)
{
    if (other.gameObject.CompareTag("Bullet"))
    {
        if (size * 0.5f >= minSize)
        {
            CreateHalf();
            CreateHalf();
        }

        Destroy(other.gameObject);
        Destroy(gameObject);

        GameManager.Instance.AsteroidDestroyed(this);
    }
}

Calling a function from another script:

You can obtain the reference either through a GameObject or directly from the other script’s component attached to a game object:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

//=========== Spawner.cs ============
// Call the SetTrajectory method by instantiating an Asteroid object
private void Spawn()
{
	// Other codes

    GameObject obj = Instantiate(asteroidPrefab, spawnPos, Quaternion.identity);
    Asteroid asteroid = obj.GetComponent<Asteroid>();
    asteroid.size = Random.Range(asteroid.minSize, asteroid.maxSize);   // Handle the random size assignment for the asteroid here
    asteroid.SetTrajectory(rotation * dir);
}

Code Reuse

1. Designing Player Invincibility Frames

This is implemented by changing the player’s physics collision layer, combined with the use of Invoke:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

private void OnCollisionEnter2D(Collision2D other)
{
    if (other.gameObject.CompareTag("Asteroid"))
    {
        GameManager.Instance.lives--;
        gameObject.SetActive(false);

        Invoke(nameof(Respawn), respawnTime);
    }
}

private void Respawn()
{
    gameObject.SetActive(true);
    gameObject.transform.position = Vector3.zero;
    gameObject.layer = LayerMask.NameToLayer("No Collision");

    Invoke(nameof(ResetLayer), invulnerableTime);
}

private void ResetLayer()
{
    gameObject.layer = LayerMask.NameToLayer("Player");
}

2. Clearing All Objects in the Scene

Both Flappy Bird and Asteroids use the same approach when resetting the game: use FindObjectsOfType to retrieve all relevant objects in the scene, iterate through the resulting array, and destroy each one.

1
2
3
4
5

Asteroid[] asteroids = FindObjectsOfType<Asteroid>();
for (int i = 0; i < asteroids.Length; i++)
{
    Destroy(asteroids[i].gameObject);
}
